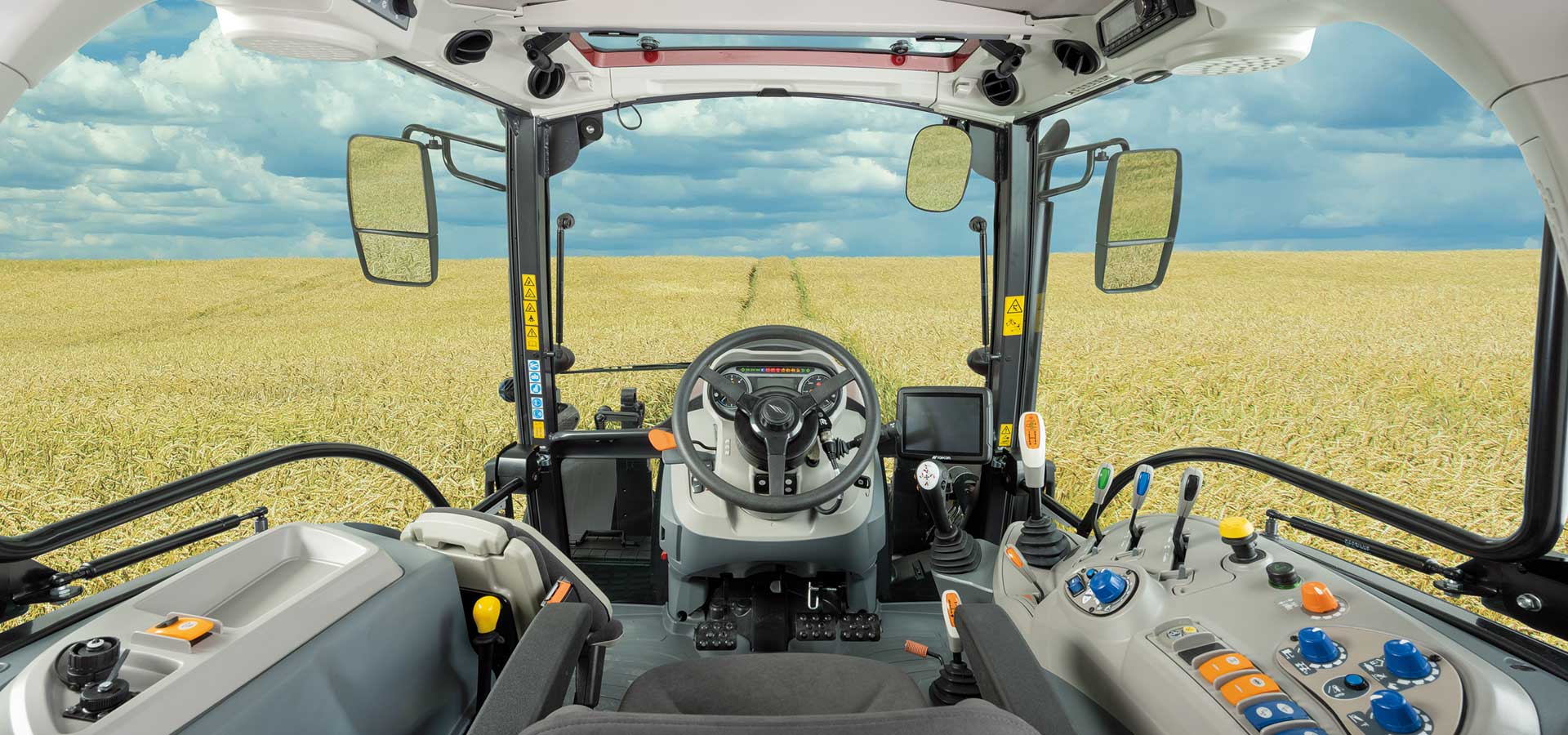

Cab
Engine
Transmission
HydraulicsTRUE HYDRAULIC VERSATILITY TO SUIT YOUR NEEDS.
The X5 features an open-centre hydraulic system with a pump that provides a flow rate of either 62 l/min or 82 l/min to operate the remote valves, the front and rear hitches and the front loader. A second pump with a flow rate of 32 l/min is dedicated to the steering system.This hydraulic capacity allows the operator to:
- speed up work;
- carry out multiple tasks simultaneously;
- perform heavier-duty tasks;
- reduce fuel consumption thanks to lower rpm engine operation;
- experience higher levels of comfort and well-being, because the lower engine speed reduces noise and vibrations;
- turn smoothly, even when performing the most demanding of tasks, thanks to the dedicated steering pump.

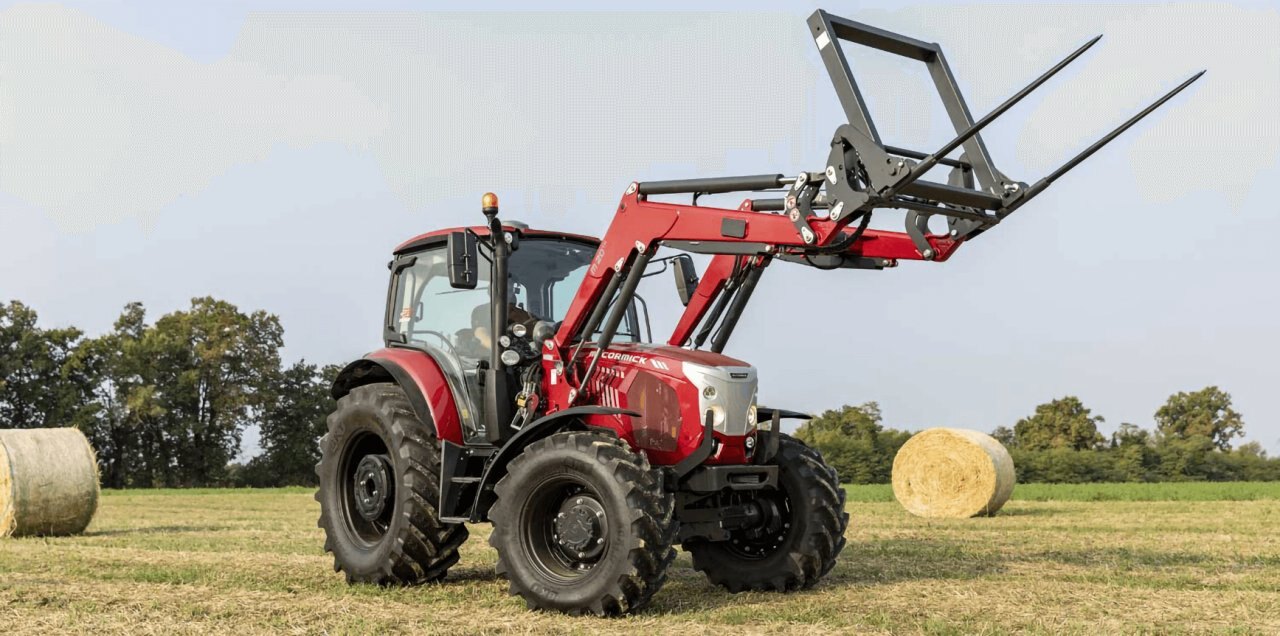

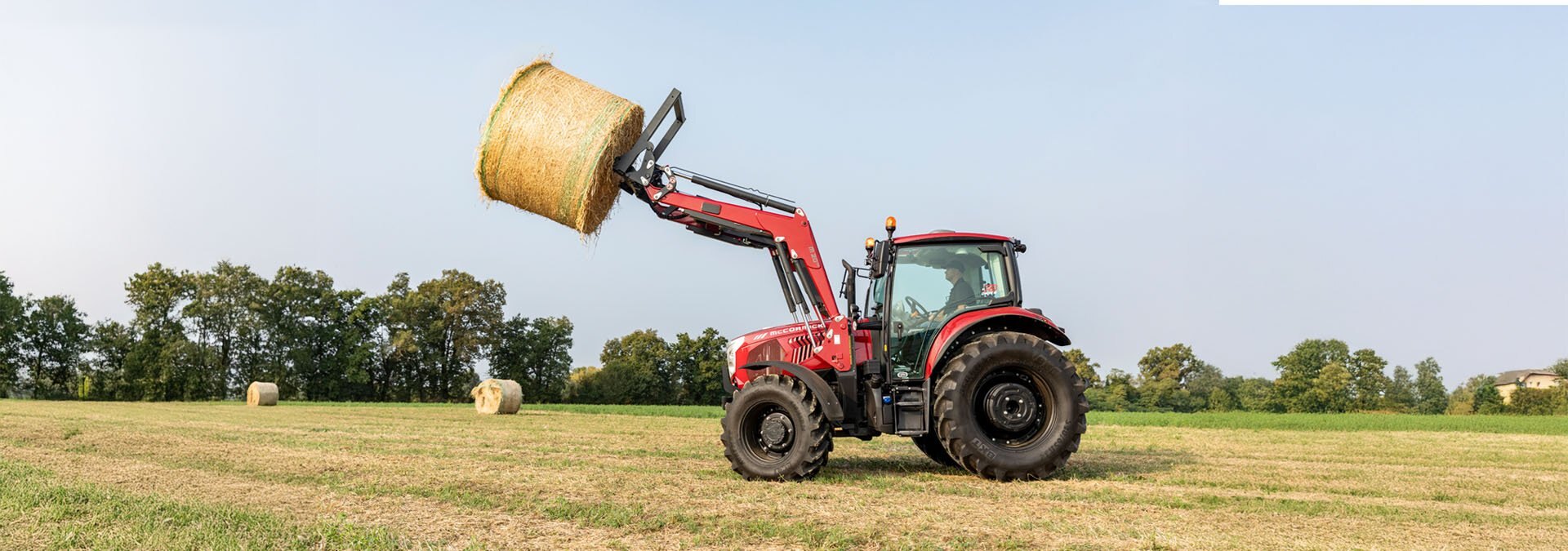

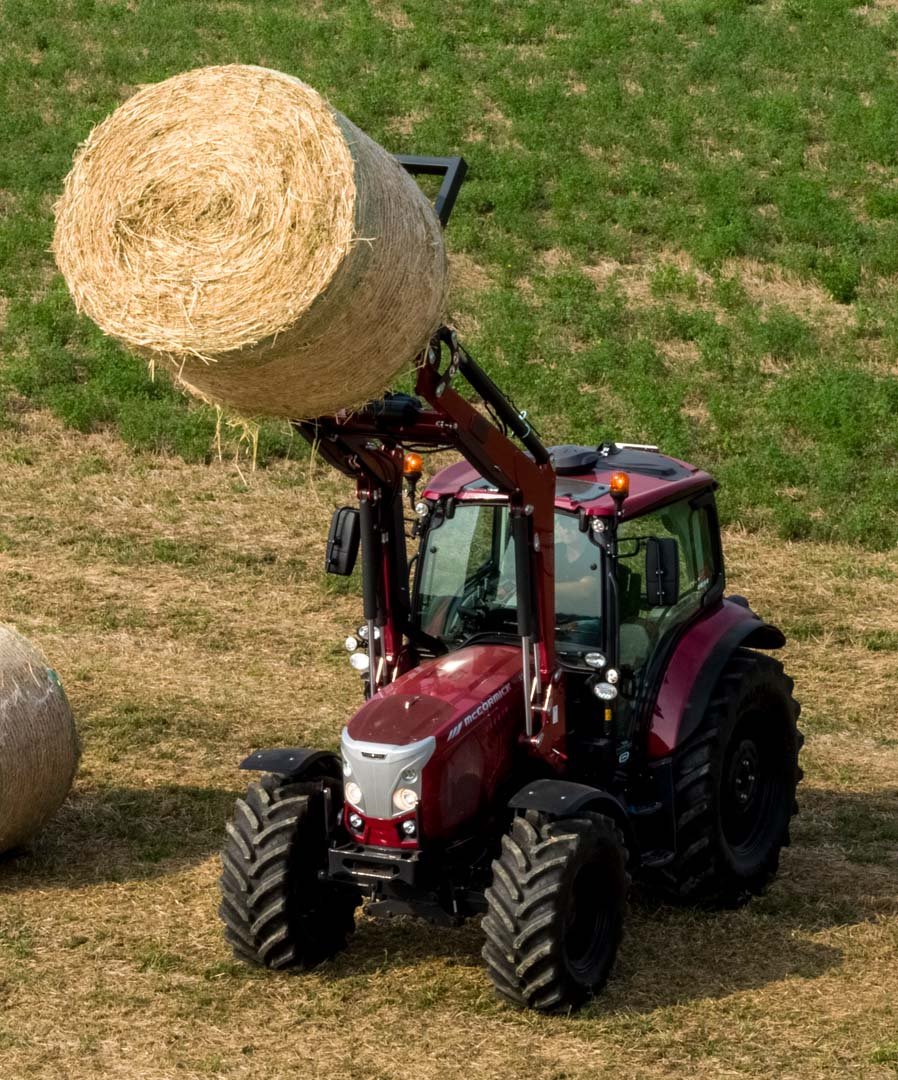

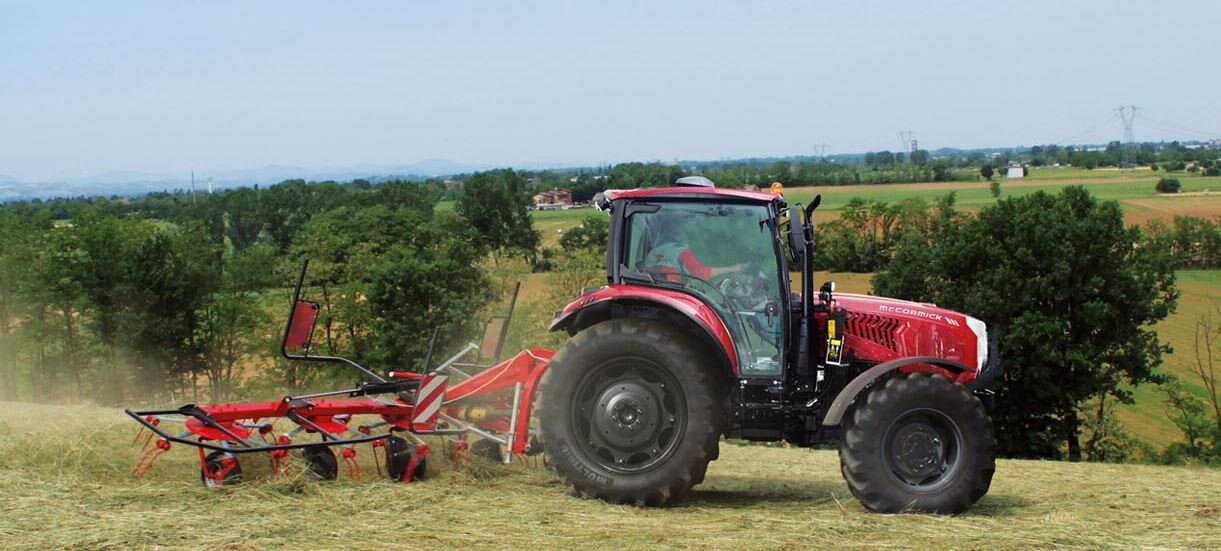

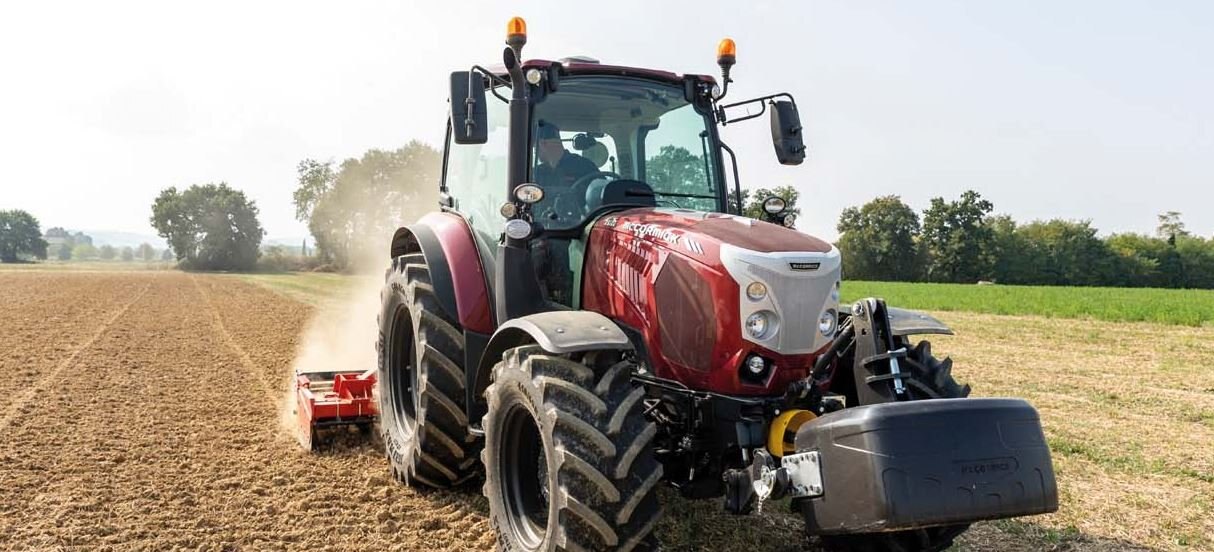

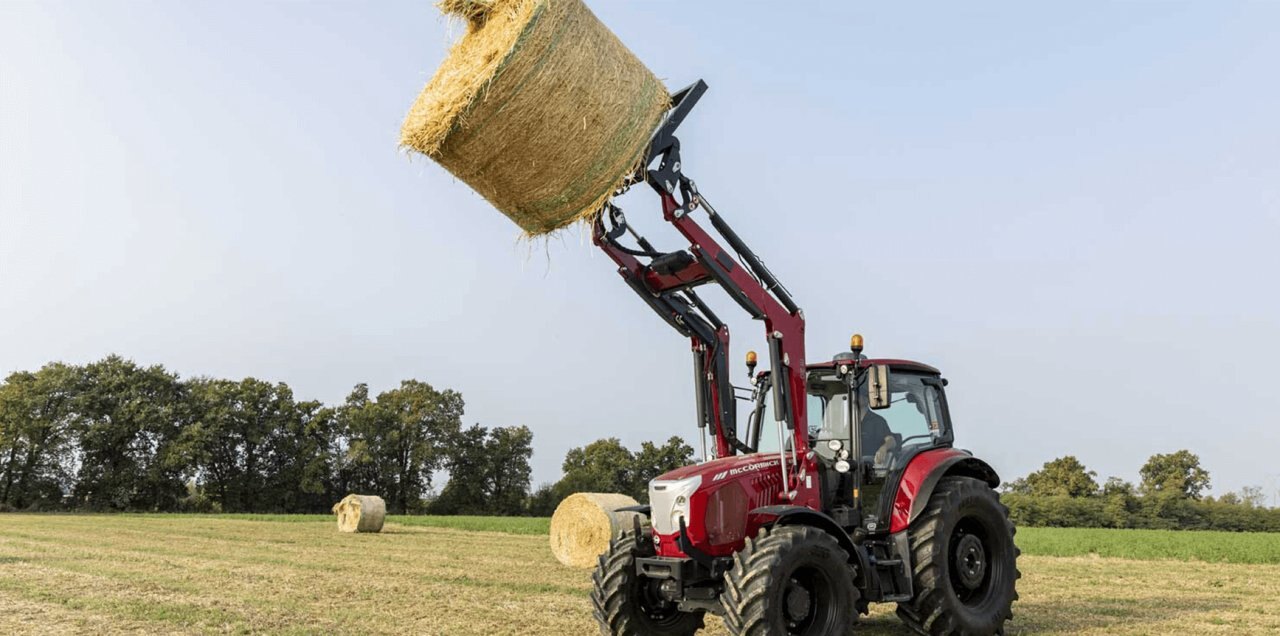

The hydraulic system of the X5 operates up to seven hydraulic functions: three mechanical and one electronic rear-mounted remotes, two mid-mounted remotes for the use of a front loader and other front-mounted implements, and a two-way flow divider that splits one remote into two. Four types of remote valves are available that can be used in combination to suit different application needs: - Standard: double-acting; - Kick-out: with automatic detent release; - Float: for implements that follow the contour of the ground; - Hydraulic motor/float: for implements requiring a hydraulic motor or a float function. The X5 multi-purpose tractor is a champion of versatility and efficiency: each configuration allows the tractor to work with the front hitch, the front loader, the rear hitch and a variety of frontand rear-mounted implements. Each remote features high-quality, easy-to-reach quick-release couplings for fast operation. Also, the flow divider allows the user to adjust the oil flow delivered to each remote.
