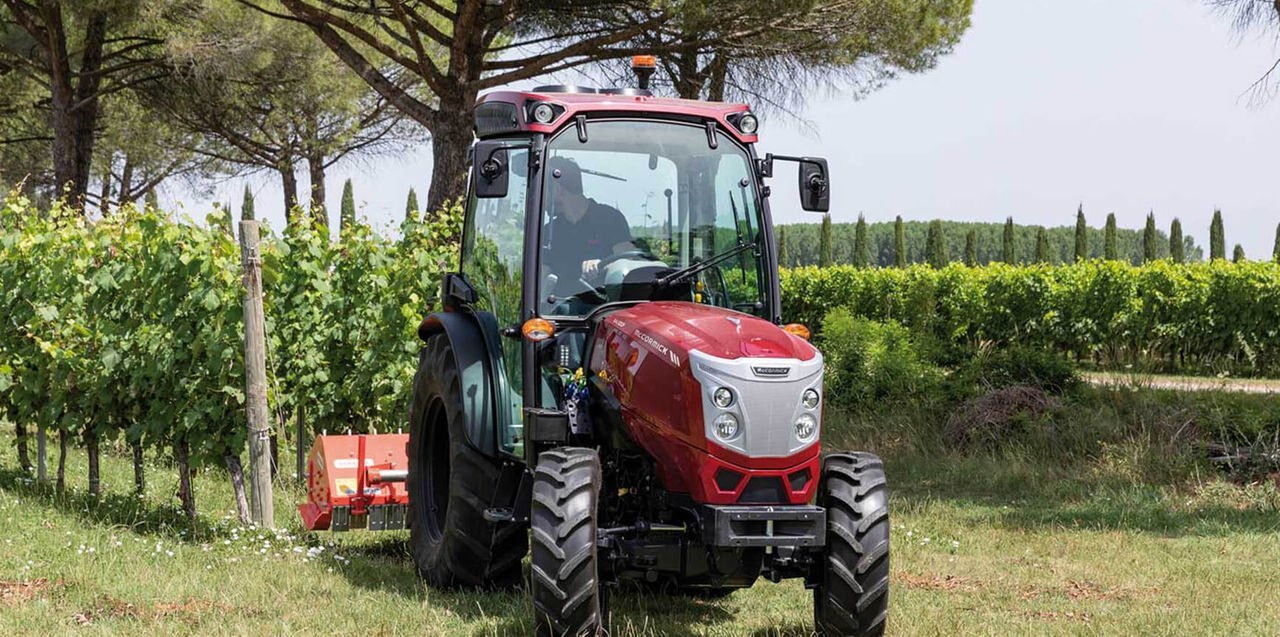

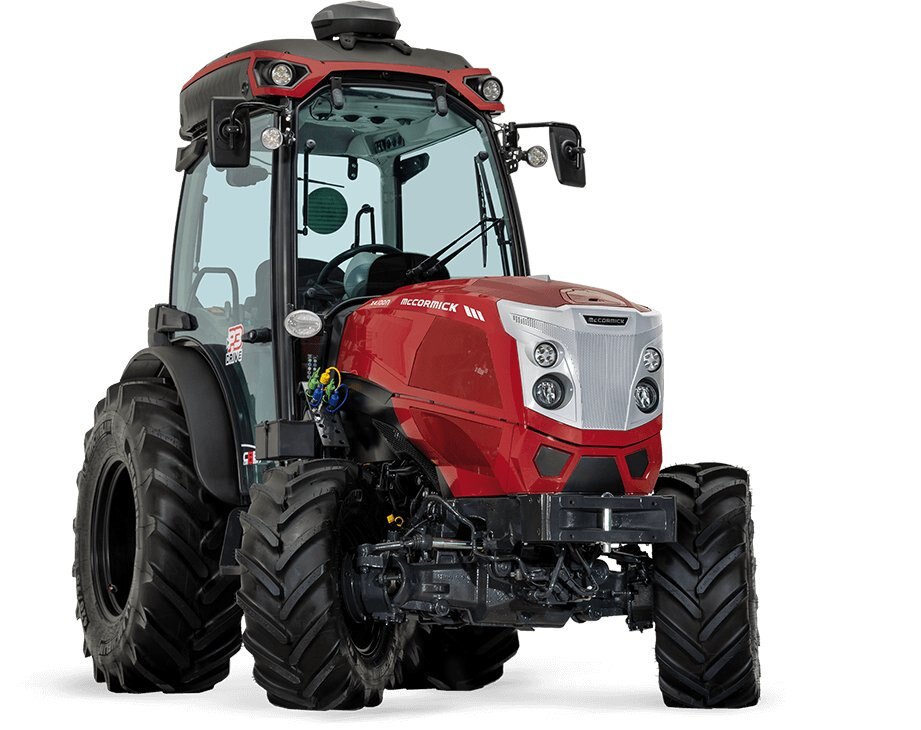

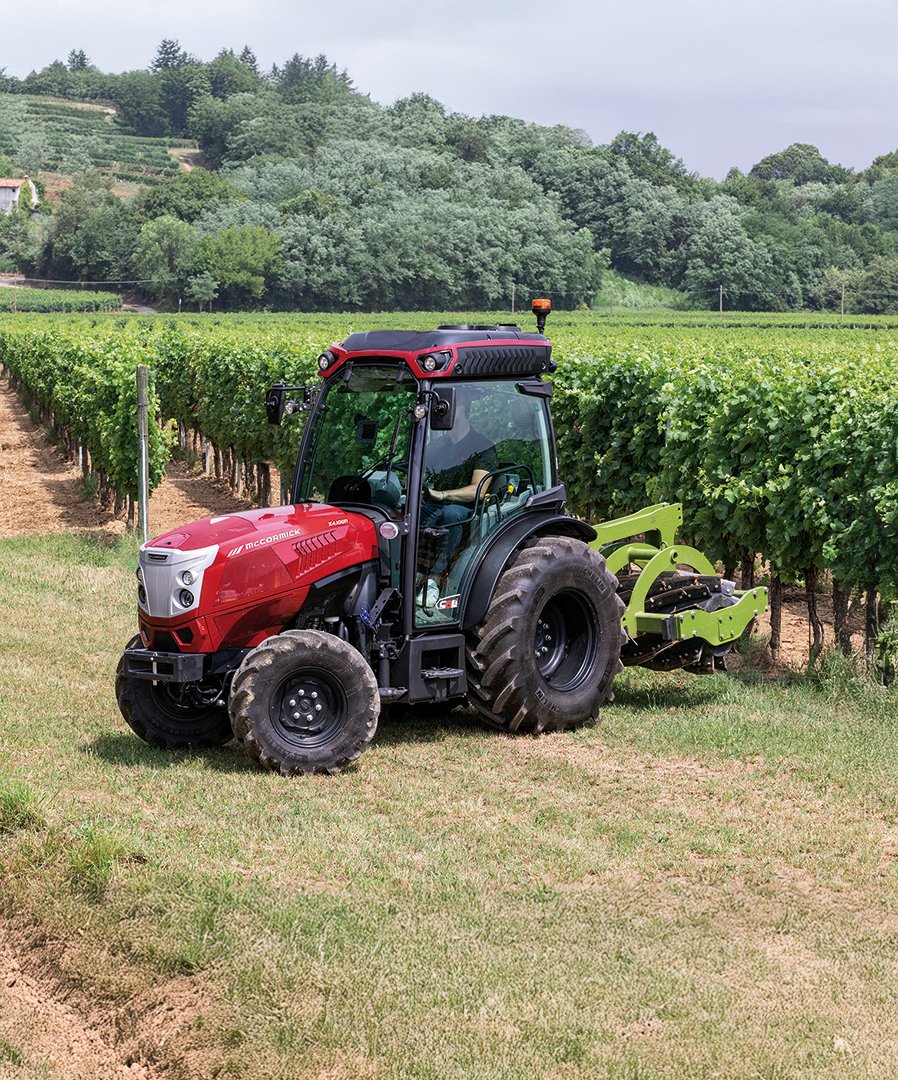

McCormick X4F CAB

Versions

RANGE OF VERSIONS.

A wide range of transmissions and axles allows the user to select from different wheelbases, heights and track widths, providing a choice of four versions to suit specific applications:

• X4F, for small- and medium-sized orchards.
• X4N, for narrow-row orchards with goblet-trained trees; this version has the same track width as the F version and the narrow cab of the V version.
• X4XL, for widely-spaced orchards and open field operations.

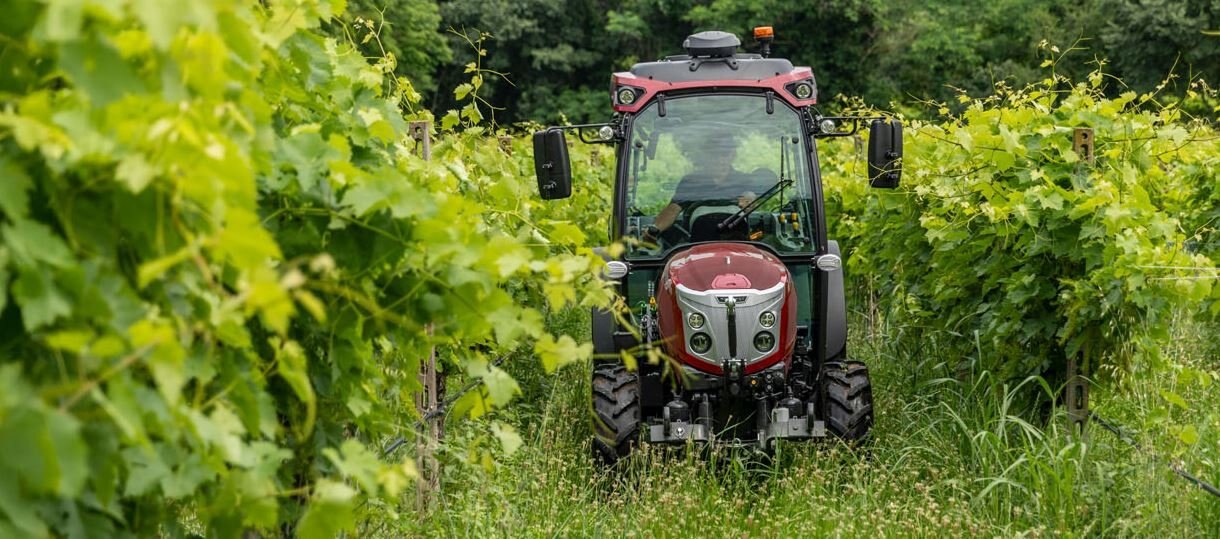

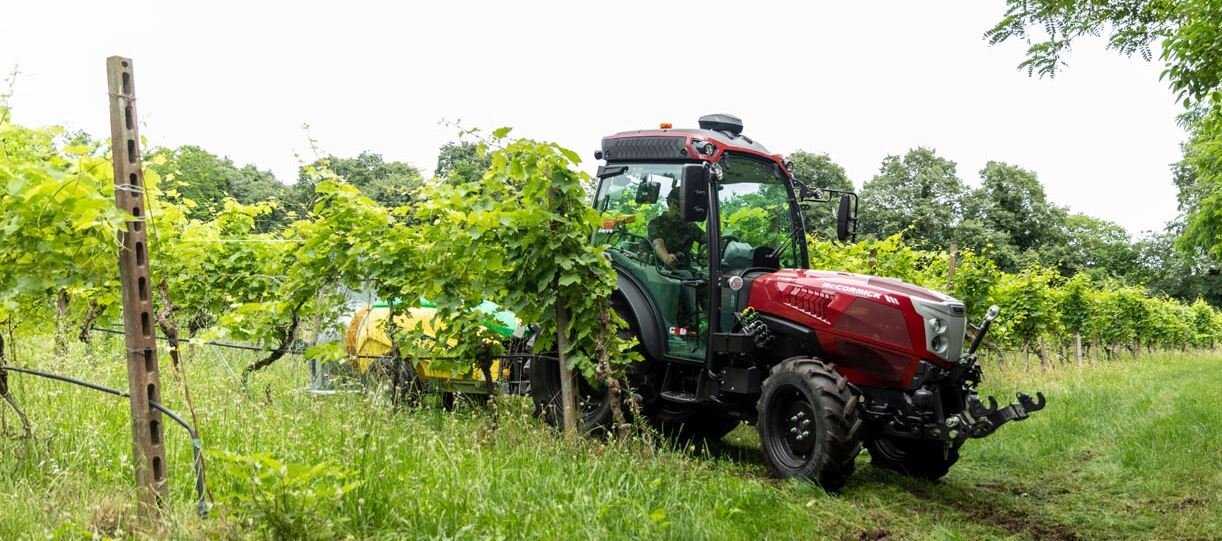

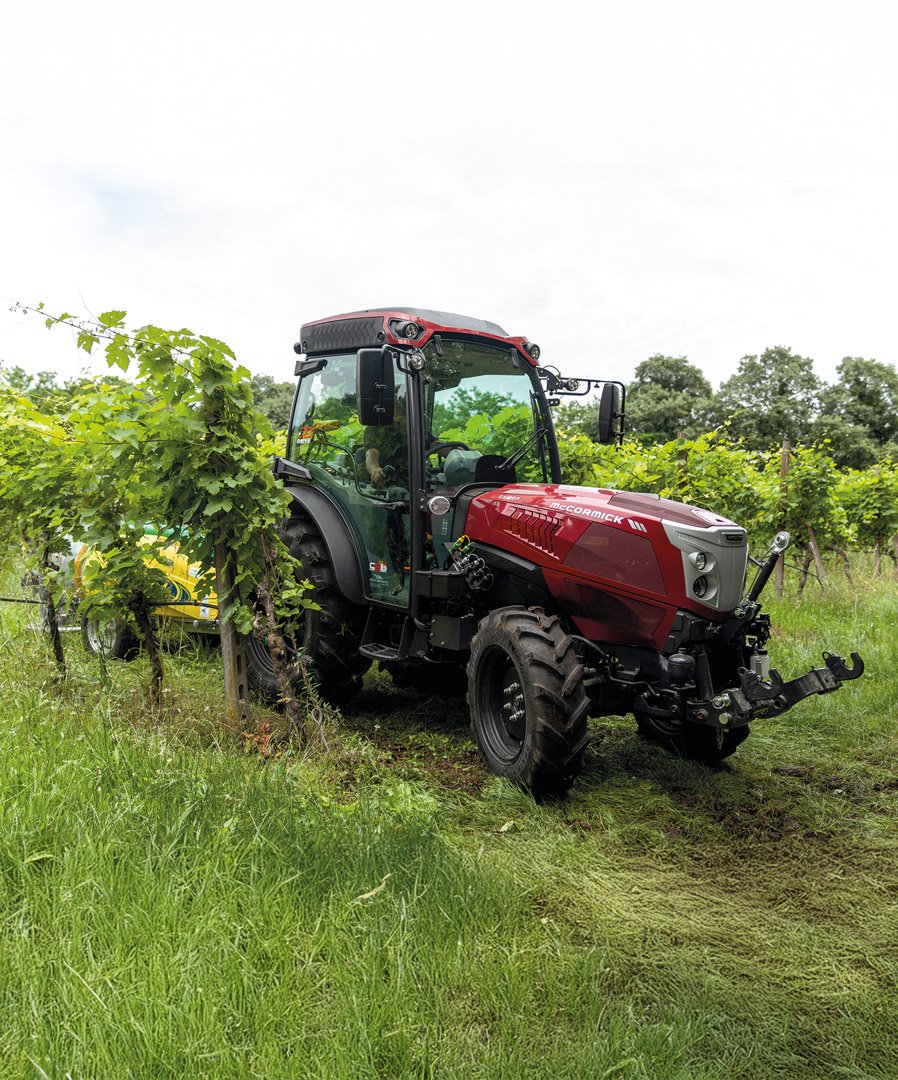

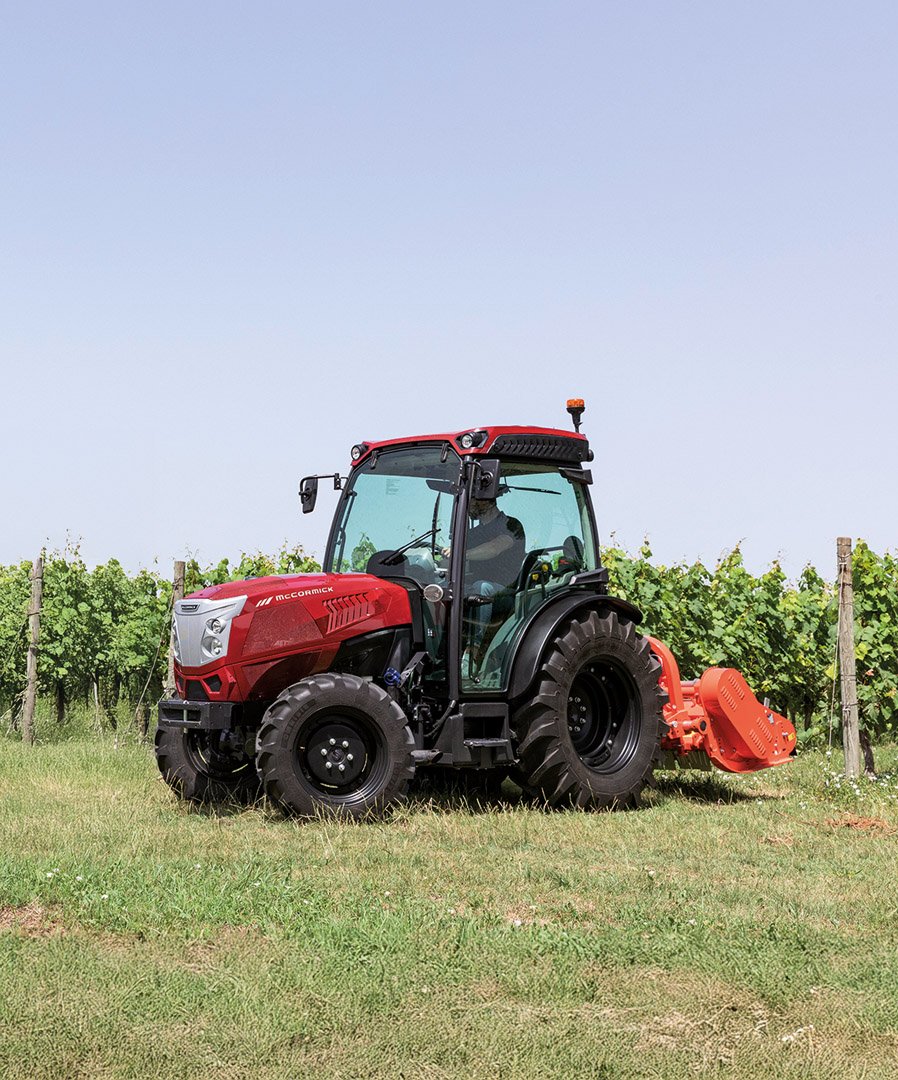

• X4V, specially designed for working in narrow-row vineyards.

Cab

PREMIERE CAB: MORE COMFORT INSIDE, A BETTER VIEW OUTSIDE.

The Premiere Cab is designed to make your working days less tiring and more productive. Its four-post design provides full all-round visibility, while the rear-hinged doors allow for easy access to the driving position. The platform is flat and clutter free, the sound insulation is excellent, the driving position is fully adjustable and equipped with ergonomic controls. Additional features include a latest-generation DSM touch screen display, a high-grade fit and finish, a DAB radio, a climate control system, and full LED lights. The satellite antenna, integrated into the cab roof, reduces the tractor’s overall height without affecting the interior dimensions of the cab.

Axle

SUSPENDED AXLE FOR UNMATCHED MANOEUVRABILITY.

The F, N and XL versions can be equipped with a suspended front axle for added stability and agility. The suspended axle gives the X4F CAB maximum grip, even on rough terrain, improves traction and control in the field and increases speed, safety and comfort during transport operations. The suspended front axle is equipped with a differential lock and wet disc brakes for efficient braking on all four wheels. The steering angle of up to 55° ensures optimum manoeuvrability in every situation.

Engine

DEUTZ STAGE V ENGINES TURN ON PRODUCTIVITY.

More power, lower fuel consumption and more versatility than ever before. These are the strong points of the new Deutz AG TCD 2.9-litre, 8-valve, 4-cylinder

engines with power ratings from 75 to 112 hp. Equipped with turbocharger, intercooler and electronic common rail injection system, these engines reach maximum power between 1,500 and 2,000 rpm. All X4F CAB tractors come with a 65-litre fuel tank with the exception of the XL version, which has an 85-litre tank. The Engine Memo Switch stores and recalls the ideal engine speed for the implement being utilised. This feature minimises fuel consumption, while making work more comfortable and productive.

Transmission

Maintenance

QUICK MAINTENANCE TO GET YOU UP AND RUNNING IN NO TIME.

The X4F CAB sets a benchmark for reliability and versatility in the tractor industry by offering a variety of solutions designed to make maintenance easier and faster.

1. Maintenance intervals extended up to 1000 hours.
2. The tilt-up bonnet and the removable side panels provide easy access to the engine compartment for fast and easy maintenance.
3. A handy toolbox is stored inside a compartment of the access ladder.
4. The oil filler cap with dipstick is positioned in the lower part of the engine, to allow topping up of engine oil without opening the bonnet.
5. The engine intake filter is conveniently positioned for easy cleaning and replacement.
6. The coolers, located in front of the radiator, and the laterally-removable dust cover allow for easy, fast and accurate cleaning.
7. The battery positive terminal is easily accessible on the front side to enable quick starting with jumper cables.
8. AdBlue refuelling is fast and easy, thanks to the door located on the bonnet and the special filler cap that does need to be unscrewed.
9. The air filters, located on the roof of the cab, are protected by quick-release grilles for fast maintenance.
10. The oil level in the transmission can be conveniently checked through the oil filler cap with dipstick placed on the tractor’s rear end.
