ID # 66300271

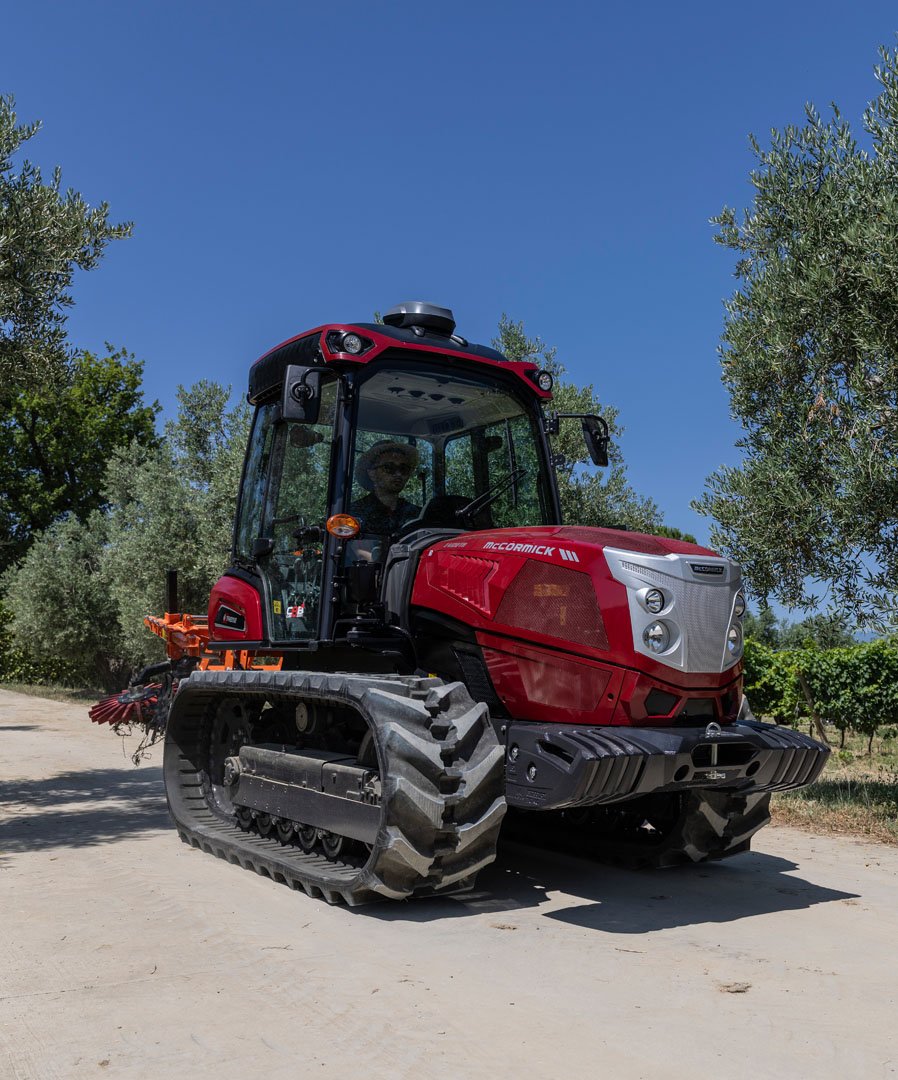

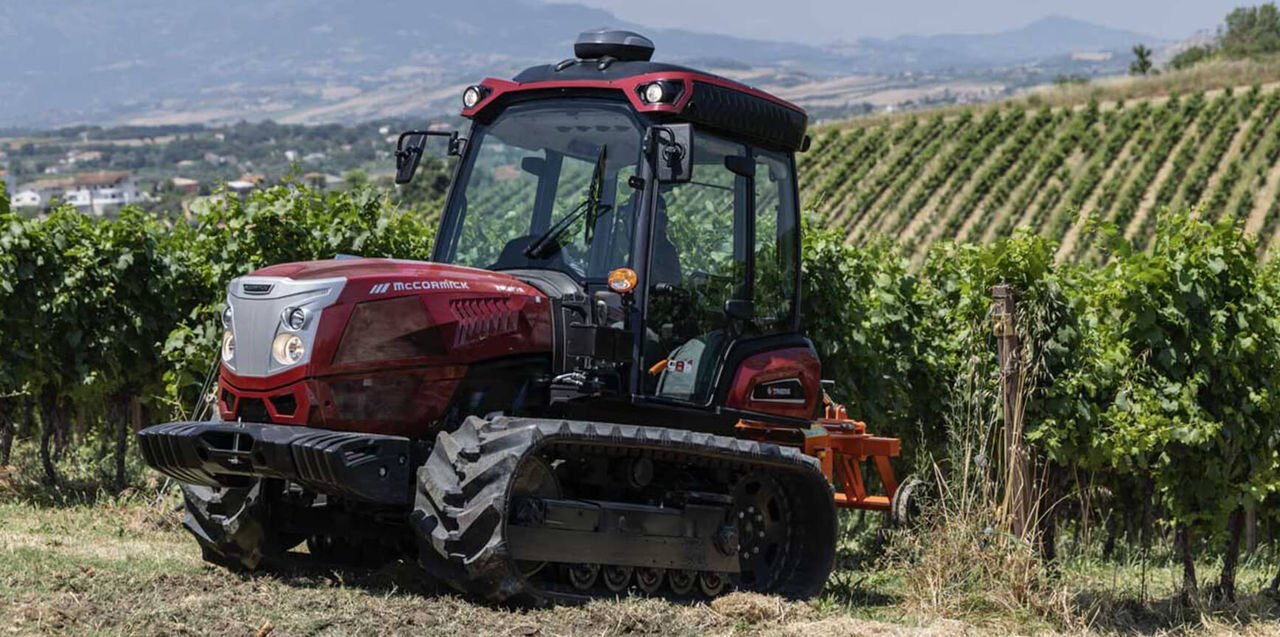

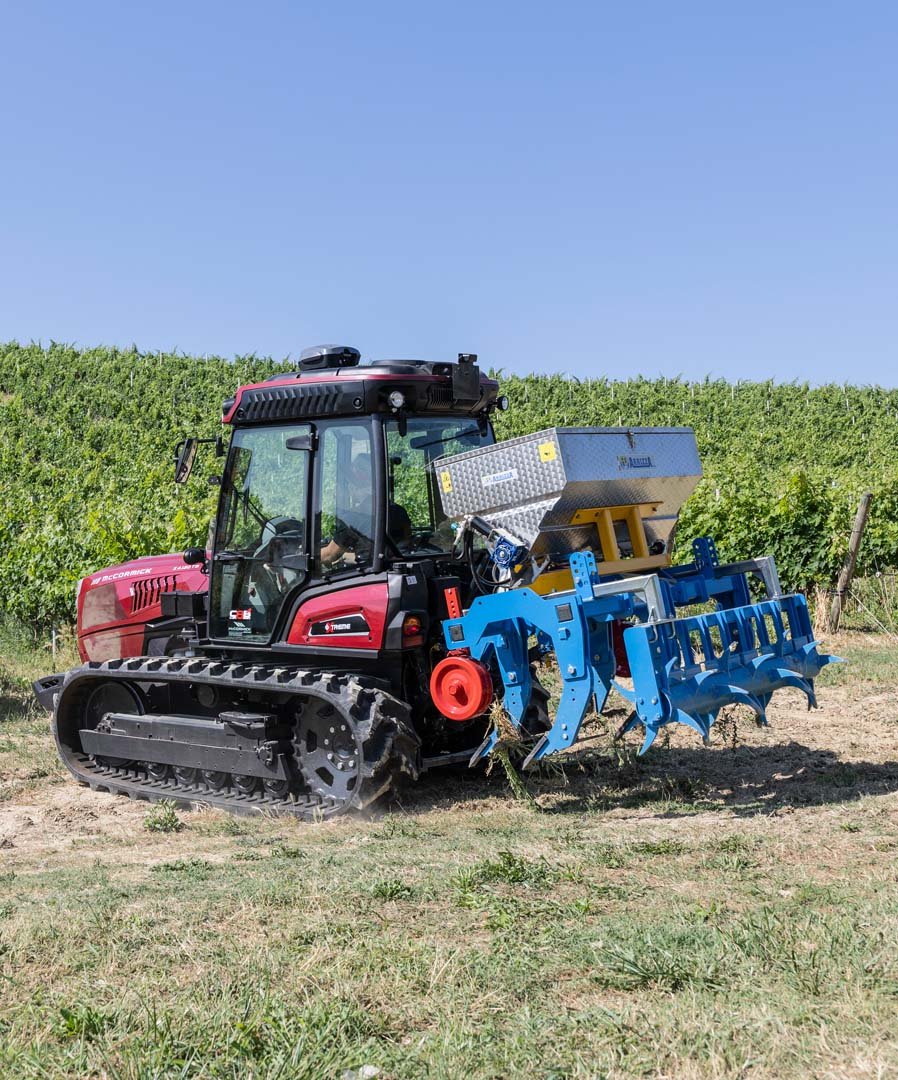

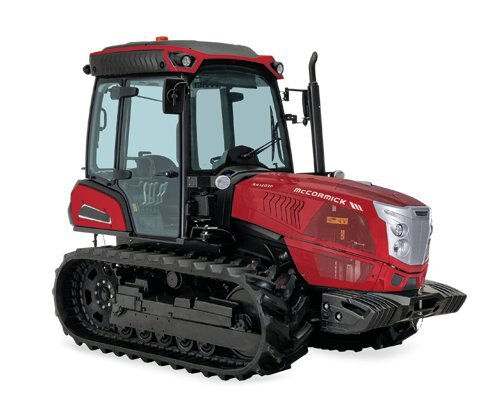

McCormick X4T

  • McCormick X4T
  • McCormick X4T
  • McCormick X4T
  • McCormick X4T
  • McCormick X4T
  • McCormick X4T
  • McCormick X4T
  • McCormick X4T

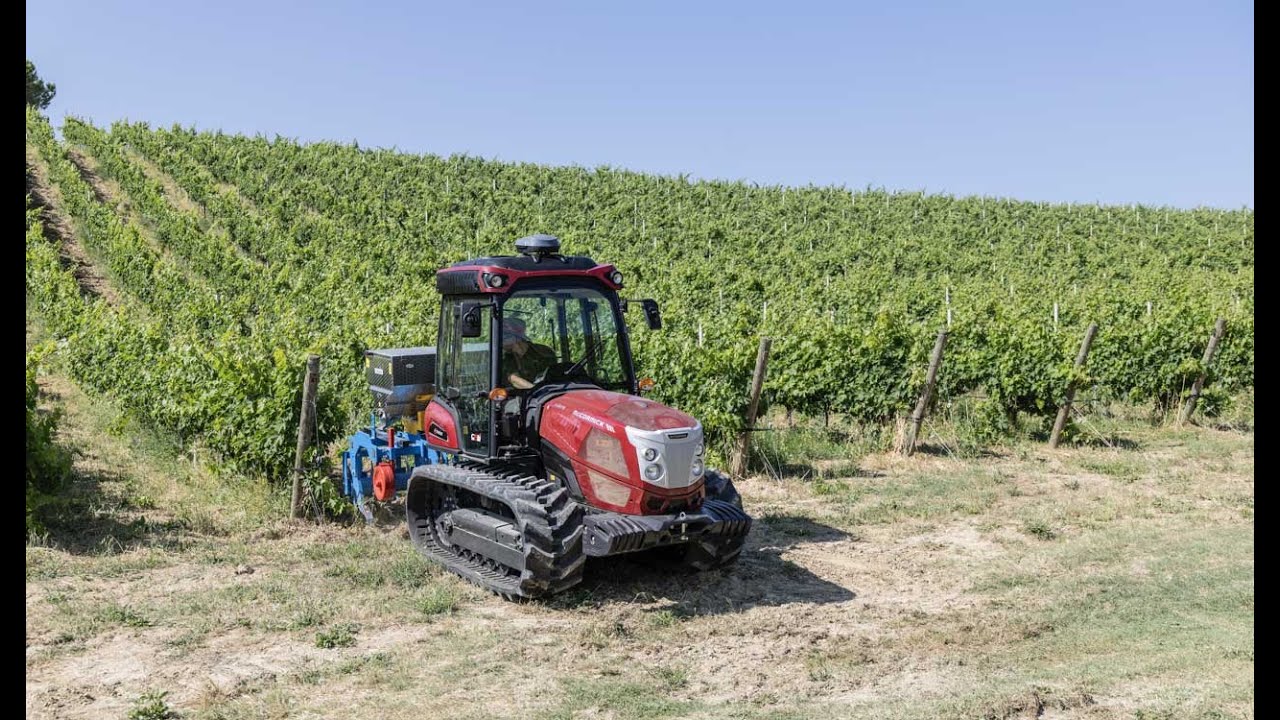

  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

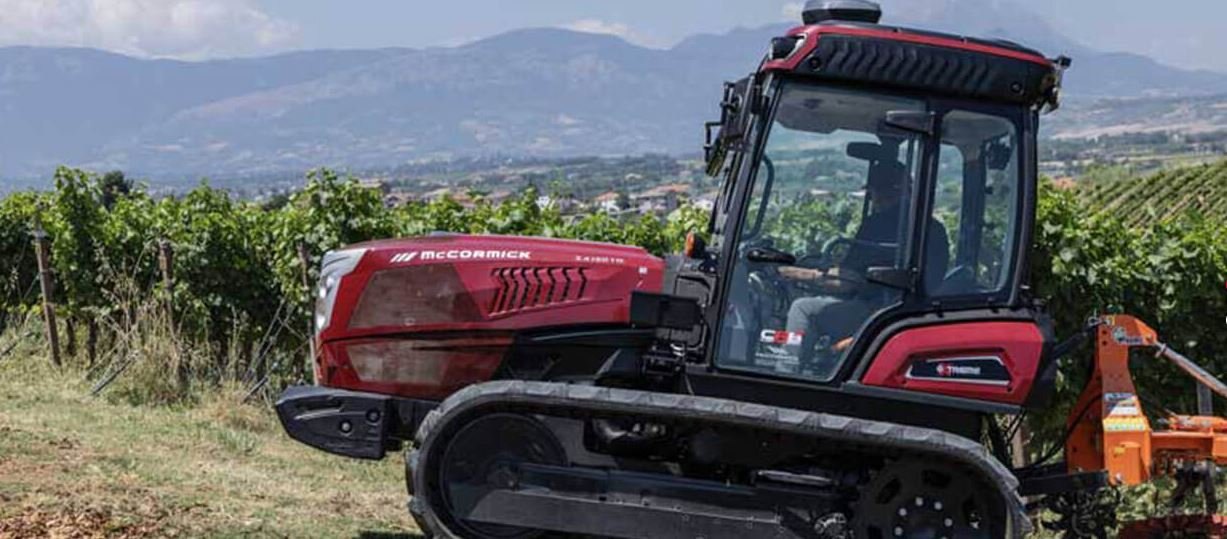

NEW McCORMICK CRAWLER TRACTOR.

McCormick's new crawler tractor is Stage V compliant, equipped with a passively regenerating DPF particulate filter, DOC oxidation catalyser and, for models with over 56 kW power output only, the SCR selective emission reduction catalyser and 10.5 litre AdBlue tank.

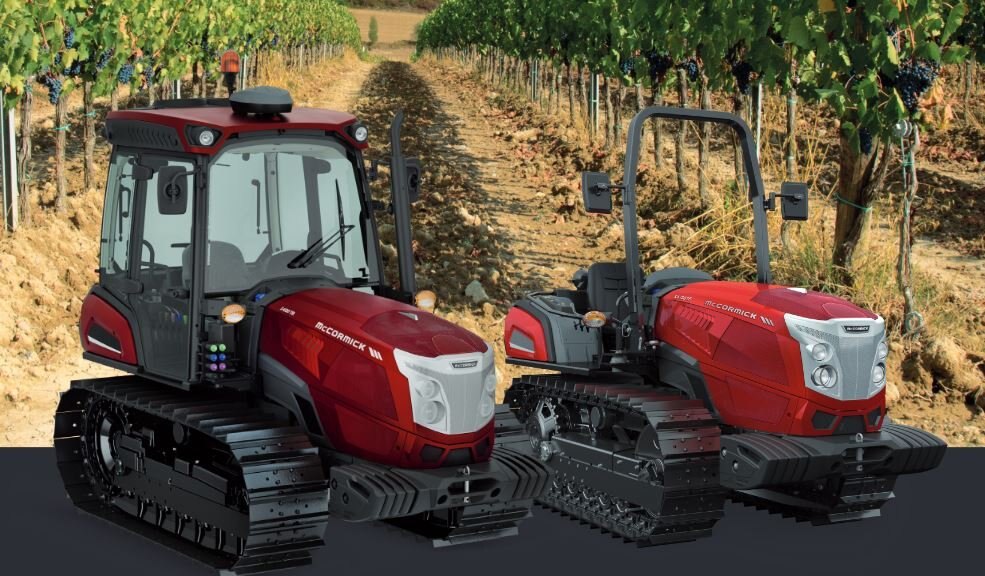

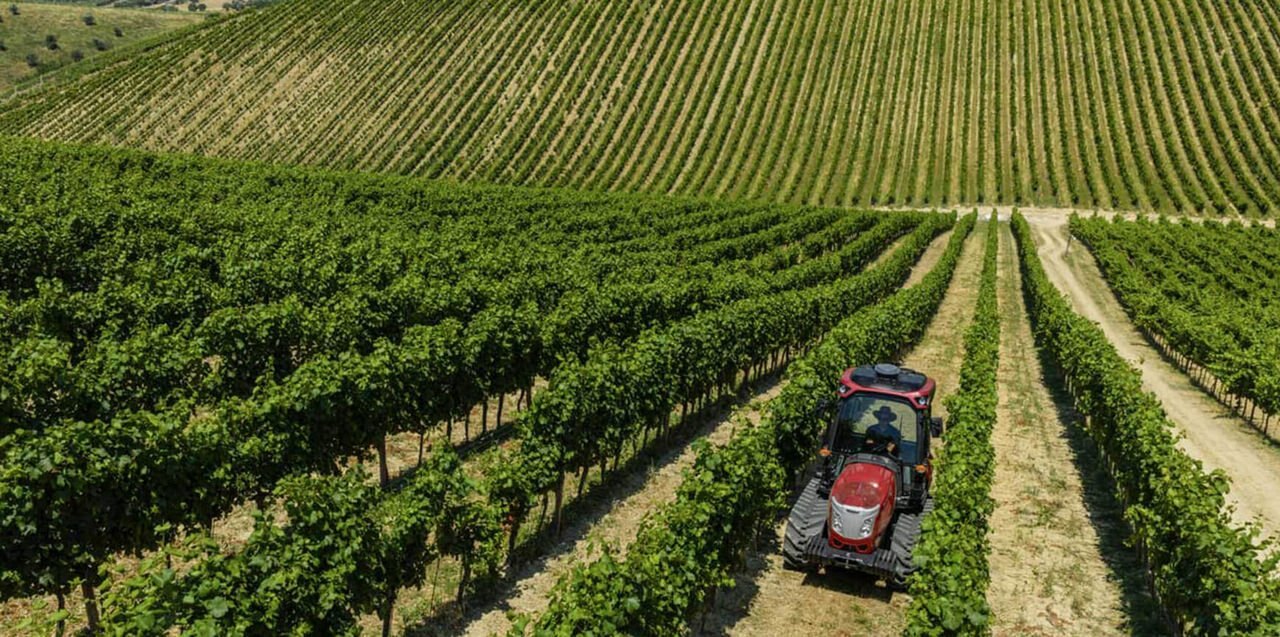

Its dimensions and height make the X4 TF-TM suitable for work in orchards (F version) and in the mountains (M version). The styling follows the new and popular design adopted for McCormick’s latest products. The tracks are available in steel or rubber. In the F version with a track width of 1,100 mm, the semi-lubricated steel tracks range from 310 to 360 mm in width, whilst in the M version with a track width of 1,300 mm, the same tracks are available in 400 or 450 mm. The rubber treads are 400 mm wide for both versions, with a track width of 1,132 mm on the F model and 1,300 mm on the M model.
Specifications
Model
X4T
Category Name
Tractors
Year
2026
Sale Type
New
Manufacturer
McCormick
Power HP
75 / 90 / 95 / 102 / 112
Transmission
Speed Four
Engine Cyl / L
4 / 2.9
features

McCormick X4T Cab

DRIVING POSITION.

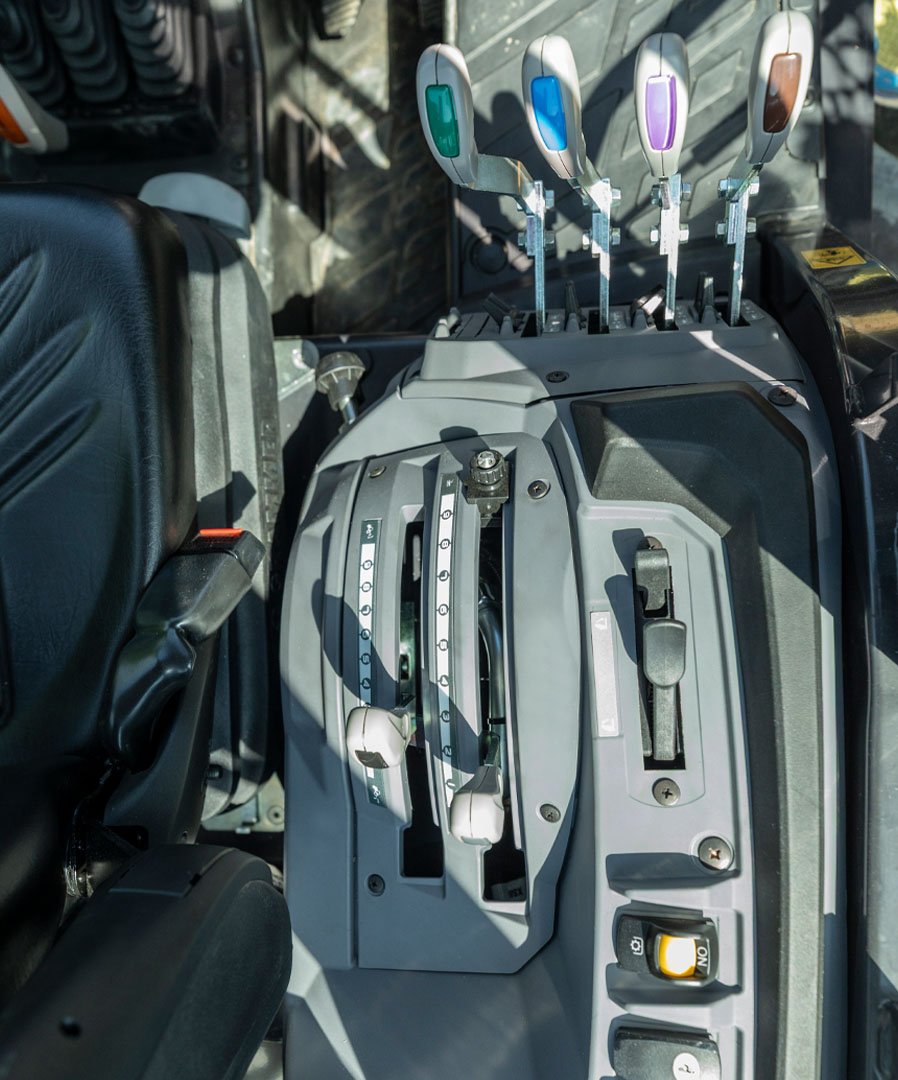

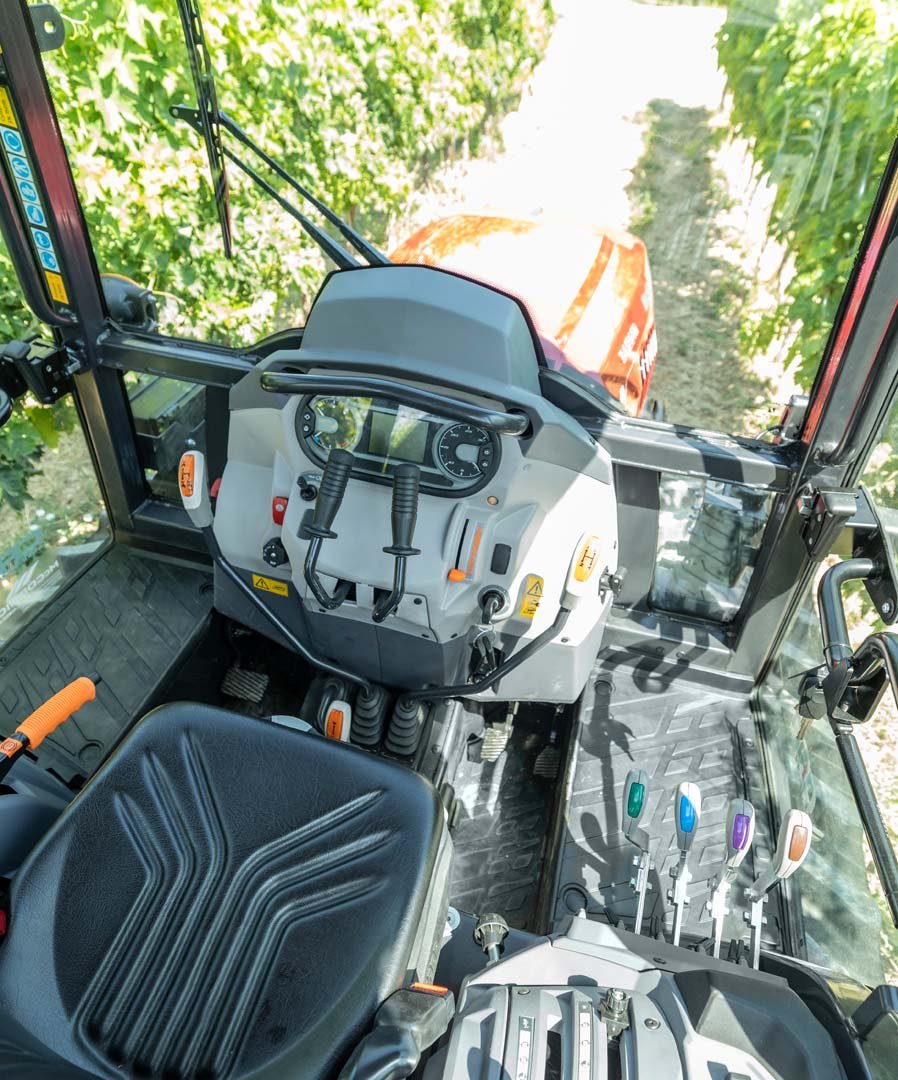

The platform is completely suspended from the wagon and engine compartment. This solution provides total insulation from heat and vibrations with a clear improvement in comfort. Front and side visibility and ergonomics are improved, thanks to the optimised driver's seat and completely redesigned side control console. The X4T is available with a category 4 cab, in accordance with the most stringent EU regulations in terms of operator safety, and with an enhanced ventilation system on board, capable of controlling internal pressurisation, and active carbon filters. Cabin pressurisation and filtration neutralise dust, pollutants and gases, also protecting the driver from the risks of treating vegetation in vineyards or orchards with plant protection products. The cab is innovative in terms of aesthetics, ergonomics, technology and is very comfortable. The X4 TF-TM offers a structural solution, i.e. a monocoque, making the tractor more compact also in terms of design, a theme on which Argo Tractors pays the utmost attention to pleasing comfort and aesthetics.

McCormick X4T Engine

STAGE V ENGINE.

The X4.085 - X4.095 - X4.105 - X4.110 - X4.120 TF/TM models offer power ranging from a minimum of 75hp to a maximum of 112hp.

McCormick X4T Transmission

THE 16 + 8 SPEED TRANSMISSION.

The 16 + 8 speed transmission operates through a synchro reverse shuttle (a plus compared to the competition) and can be configured with overdrive, to increase the top speed up to 15 km/h, or alternatively with the Creeper, which allows a minimum speed of 300 metres per hour.

McCormick X4T Hydraulics

X4T HAS A DUAL PUMP HYDRAULIC CIRCUIT.

The X4T has a dual pump hydraulic circuit, a 28.5 l/min pump for steering and a 42 l/min pump for the linkage and spool valves. To the basic equipment, three rear spool valves, two more can be added as options up to a total of five, with six front quick couplers and optional flow regulator. The rear power lift, further enhanced compared to the previous version and enriched with the optional ELS, has a maximum load capacity of 3,150 kg in the standard configuration and 4,500 kg when fitted with 2 additional hydraulic cylinders.
